Installation & Adjustment Department

Installation & Adjustment Department of PJSC UKRNAFTA (hereinafter the IAD) Founded on November 18, 2005.

Vision
We are a team of professional innovators who develop and implement best practices in providing technical support and maintenance services to oil and gas companies.

Mission: We provide professional services that ensure the reliability and safety of equipment and quality of oil and gas products.

Our values:

  • Competence
  • Teamwork
  • Effective initiative
  • Trust
  • Creativity

Areas of activity:

IAD is a diversified service entity that renders services to maintain the following systems and equipment:

  • systems for automated control of technological processes;
  • liquid-and-gas metering automated units;
  • chromatographs and other equipment of chemico-analytical laboratories;
  • liquid-and-gas consumption meters;
  • measuring and production-automation equipment;
  • fire protection systems;
  • systems of security alarm and video surveillance;
  • heat-engineering equipment and systems;
  • ventilation and air-conditioning systems;
  • pump-compressor equipment;
  • instruments and devices for safety of lifting cranes;
  • protection equipment for work at height.

IAD provides comprehensive rendering of services at all stages of the life cycle of operation of the technological equipment of mining facilities, treatment, transportation and processing of oil and gas, from mounting and commissioning works in putting facilities into operation, to ensuring their constant operational suitability by conducting maintenance, adjustment, calibration, diagnose and repair in the process of operation.

IAD is a widely spread entity territory-wise. Our units are located nearly in all regions of oil-and-gas extraction in Ukraine: Sumy, Poltava, Chernihiv, Ivano-Frankivsk and Lviv regions. It enables the responsiveness and efficiency of rendering services to our consumers.

Many years of experience, highly skilled personnel, developed, modern material and technical base allows IAD to carry out tasks of increased complexity in all areas of operations.

Consumers of IAD services include not only structural units of PJSC UKRNAFTA the but also third-party enterprises of the oil and gas sector.

INSTALLATION & ADJUSTMENT DEPARTMENT OF PJSC UKRNAFTA OFFERS RENDERING OF THE FOLLOWING SERVICES:
SYSTEMS FOR AUTOMATED CONTROL OF TECHNOLOGICAL PROCESSES

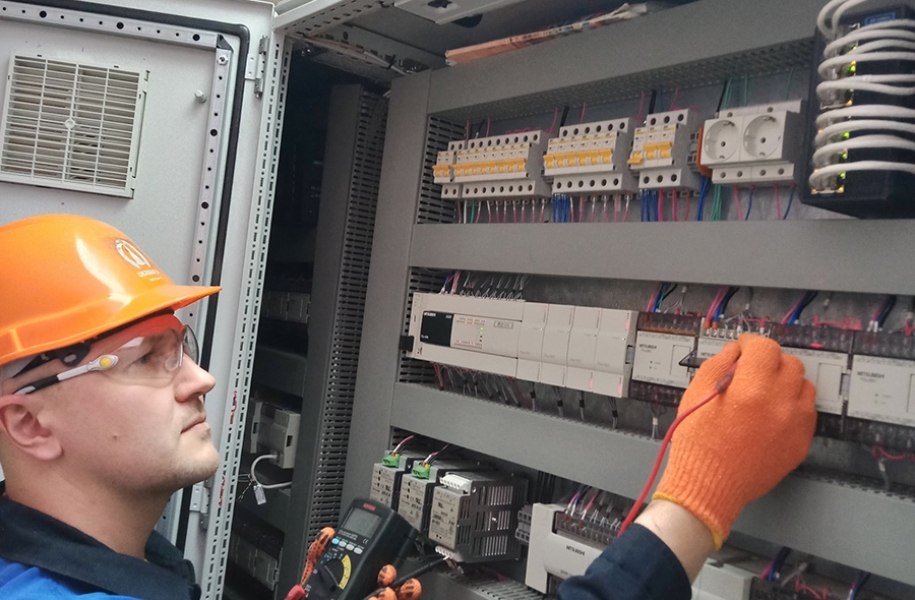

  • Mounting and commissioning works of automation equipment and systems for automated control of technological processes.
  • Maintenance of the systems for automated control of technological processes and information-measuring systems.
  • Development of the software managing the automated systems for automated control of technological processes and information-measuring systems.

IAD has experience in adjusting, maintaining and programming the systems on the basis of programmable logic controllers, Mitsubishi, Allen-Braddley, B&R automation, ICPDAS, ADAM, Emerson, Weintek and Citect Scada, InTouch, TraceMode, DeltaV, "Diya" Research and Innovation Company and others.

AUTOMATED FLUID-AND-GAS METERING UNITS
  • Commissioning works of automated fluid-and-gas metering units.
  • Maintenance of automated fluid-and-gas metering units.
  • Preparation and participation in the State verifications of metering units in the system and separate pieces of measuring equipment.

IAD has experience of maintaining the metering units and information-measuring systems, built on the basis of computers, correctors, multiparameter converters, Coriolis and ultrasonic flowmeters, level glasses made by Ukrgaztek Subsidiary Company, Energooblik JSC, Graphys Research-and-Production Company LLC, Izodrom LLC, Radmirtekh Joint Venture, Emerson, Fisher Rosemount, Yokogawa, ABB, Aplisens, Mikrometrm Research-and-Production Company Siemens, Honeywell, Metran, Elfer, Safir, Mida Industrial Group, Krohne, Endress Hauser and others, as well as the achievements in the reclamation works of highly structural and functional complexity.

CHROMATOGRAPHS AND OTHER EQUIPMENT OF CHEMICO-ANALYTICAL LABORATORIES
  • Maintenance of chromatographic and other laboratory equipment.
  • Recovery of the operability of chromatographs and other equipment of chemico-analytical laboratories.
  • Preparation and participation in the State verifications of chromatographic systems.

IAD has experience in maintaining and repairing chromatographs Krystall 5000.2, Krystall 2000m, Khromos GKh-1000, Aglient; density meters DMA 4500; spectrophotometers Ulab 102; analyzers of mass fraction of sulphur in liquefied and natural gases XPLORER TS; condensing and thermometric hygrometers of the "Toros" series; photometric colorimeters KFK-2Mk; pH-meters pH-150MI and similar; devices for the distillation of petroleum products AFS-1n, ARNP-2; devices for determining sulphur in heavy petroleum products POST-2Mk; thermostats, water baths, drying boxes, muffle furnaces, water distillers and other laboratory equipment.

LIQUID-AND-GAS CONSUMPTION METERS
  • Monitoring of the metrological characteristics of liquid-and-gas consumption meters.
  • Preparation of meters to the State verification, organization and participation in the State verification of meters.
  • Recovery of the operability of liquid-and-gas consumption meters.

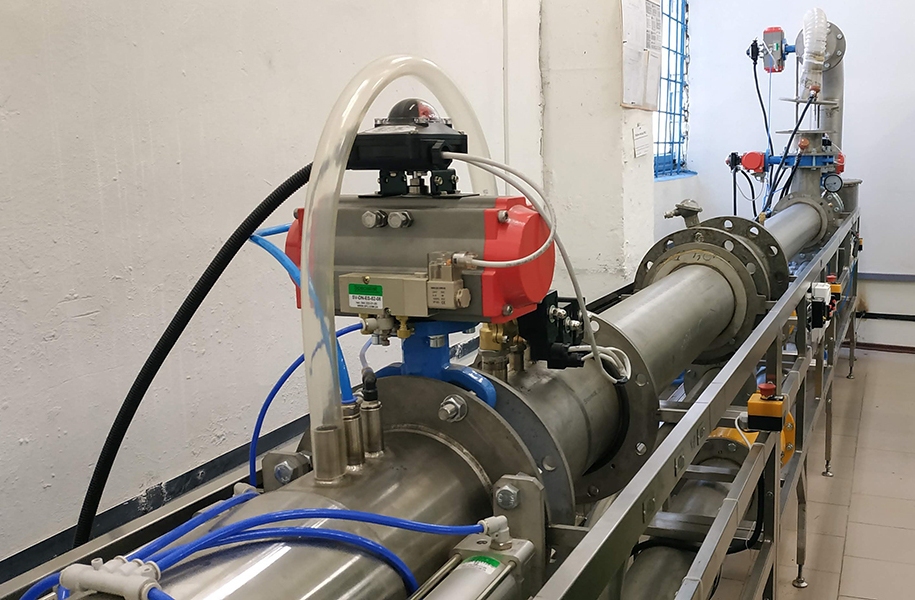

IAD has two automated verification rigs to check the metrological characteristics of liquid-and-gas consumption meters with the possibility of organizing the State verification, and the experience of adjustment, repair and inspection of the metrological characteristics of liquid-flow meters of type Nord, Tor, Pur, UVR-011, Vzlet, LLT and others; gas meters such as GUVR-011 made by AT Energoblik JSC, KVR made by Radmirtekh Joint Venture; rotary and turbine gas meters RGK, RGS, LG-K made by Promprylad PrJSC; gas meters Itron Delta; vortex meters Endress Hauser Prowirl.

Rig for liquid meters has the main characteristics as follows:

Consumption range – from 0.3 m3/h to 180 m3/h.
Nominal diameter of meters – 40, 50, 65, 80, 100, 150 mm.
The main relative error of measuring the volumetric consumption and fluid volume by the rig – ± 0.2 %.

The rig for gas meters has the main characteristics as follows:

Consumption range – from 0.16 m3/h to 2500 m3/h.

Nominal diameter:
     - For turbine meters – 40, 50, 65, 80, 100, 150, 200 mm;
     - For rotary meters – 23, 32, 40, 50, 65, 100, 125, 150 mm.
The main relative error of the rig:
     - ± 0.3 % for range 0.5-2500 m3/h;
     - ± 0.5 % for range 0.16-0.5 m3/h./em>

MEASURING AND PRODUCTION-AUTOMATION EQUIPMENT
  • Repair and monitoring of the metrological characteristics of measuring equipment of:
         - technical, electrical contact and recording manometers;
         - hydraulic weight indicators;
         - well manometers;
         - panels of electric meters.
  • Calibration of tanks:
         - by geometrical method (above-ground vertical and horizontal);
         - by volumetric method.
FIRE PROTECTION SYSTEMS
  • Mounting and commissioning works of fire protection systems (fire alarm systems, fire extinguishing systems, fire alert and evacuation management systems, alert warning equipment).
  • Maintenance of fire protection systems (conduct of the technical inspection, maintenance and reclamation works of fire alarm systems, fire extinguishing systems, fire-alert and evacuation-management systems).

IAD has experience of maintaining the Fire Protection Systems, built on the basis of "Tiras", "Warta", "Arton" and others.

SYSTEMS OF SECURITY ALARM AND VIDEO SURVEILLANCE
  • Mounting and commissioning works systems of security alarm and video surveillance.
  • Maintenance systems of security alarm and video surveillance.
HEAT ENGINEERING EQUIPMENT AND SYSTEMS
  • Commissioning works and regime-adjusting, ecological and heat-engineering tests of fuel-utilization equipment:
          - steam boilers (of types PKN, KPA, E, MZK, DKVR and others);
          - water-heating boilers (of types KSG, AOGV., E, Fakel, DTG, Viessmann Vitoplex, KGB, KST, KVaS, VK, KSVA, DKVR, VKGM, KSVa and others);
          - heaters (of types PG, PT, Tayfun, KG and others);
          - process furnaces (of types TsS, PB, PB, OFG, PBG and others);
          - heat generators (of type TG and others).
  • Adjusting works of water-treatment equipment (sodium-cation filters, deaerators) and water-chemical regime of boilers.
  • Adjusting works of automation of safety for fuel-utilization equipment (steam and water-heating boilers, process furnaces and heaters, heat generators, domestic boilers, mobile steam units and other equipment).
  • Adjusting works of heat networks (steam and water-heating heat networks, heat-consumption systems).
  • Thermal imaging of facilities (buildings and structures, fuel utility and heat power equipment, electrical and industrial-technological equipment, heat networks and others).
  • Energy audit of buildings (residential, public, administrative and industrial buildings, as well as structures).
VENTILATION AND AIR CONDITIONING SYSTEMS
  • Aerodynamic testing and adjustment of ventilation systems:
          - pre-operational testing and adjustment of ventilation systems for the design figures;
          - certification of ventilation systems;
          - periodic testing and adjustment of ventilation systems for the design figures during operation.
  • Repair and maintenance of ventilation installation with next typical sizes of fans:
          - centrifugal from No.2.5 to No.12;
          - axial from No.3.15 to No.10;
          - roof from No.3.15 to No.6.3;
          - dust from No.3.15 to No.10.
PUMP COMPRESSOR EQUIPMENT
  • Vibration diagnostic of pump-compressor equipment:
          - electric motors with a power scale up to 1600 kW;
          - pumps of centrifugal multistage type TsNS, multisectional, designed to pump water;
          - centrifugal oil console pumps of type NK and sectional of type NPS and NSD, designed to pump oil, petroleum products, liquefied hydrocarbon gases and other liquids;
          - screw compressors to pump gas.
INSTRUMENTS AND DEVICES FOR SAFETY OF LIFTING CRANES
  • Mounting, adjustment and repair of the instruments and devices for safety of lifting cranes:
          - safety instruments and devices of type OGB-2, OGB-3P, PZK-10, PZK-30, ONK-160;
          - anemometers ASTs-3 and others.
PROTECTION EQUIPMENT FOR WORK AT HEIGHT
  • Conduct of the static tests of protection equipment for work at height:
          - ladders and steps;
          - safety belts, safety slings.

PJSC UKRNAFTA Installation & Adjustment Department

42704, Ukraine, Sumy region, Okhtyrka, 119, Kyivska St., PO box 1.

Telephone:
+380 50 352 88 60
+380 50 304 44 56

E-mailmnu@ukrnafta.com
